| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|

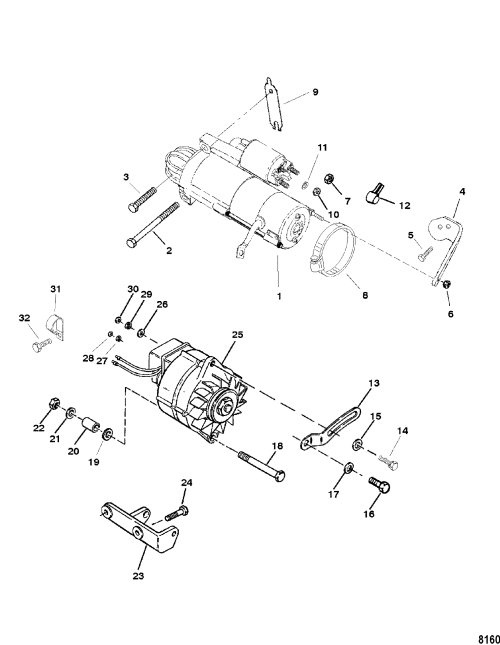

| 1 |
806965A2 |
STARTER MOTOR ASSEMBLY |
|
(See "Starter Motor" Section For Breakdown) |
|
|
|
| |
| 2 |
8053432 |
SCREW, (.375-16 x 4.33) |
|
|
|
|
|
| |
| 3 |
8053434 |
BOLT, (1.6875) |
|
|
|
|
|
| |
| 4 |
807213A1 |
BRACKET, Starter |
|
|
|
|
|
| |
| 5 |
824941 |
SCREW, (.312-18 x .750) |
|
|
|
|
|
| |
| 6 |
21806 |
NUT, (#10-24) |
|
|
|
|
|
| |
| 7 |
806949 |
NUT, (M8-1.5) |
|
|
|
|
|
| |
| 8 |
815504348 |
CLAMP, Worm Gear |
|
|
|
|
|
| |
| 9 |
98192 |
SHIM |
AR |
|
|
|
|
| |
| 10 |
400211 |
NUT, (M5) Stainless Steel |
|
|
|
|
|
| |
| 27 |
26996 |
LOCKWASHER, (#10) Stainless Steel |
|
|
|
|
|
| |
| 12 |
79695 |
BOOT, Insulator - Black |
|
|
|
|
|
| |
| 13 |
58333 |
BRACE, Alternator Adjusting |
|
|
|
|
|
| |
| 14 |
29198 |
SCREW AND LOCKWASHER, (.312-18 x .875) |
|
|
|
|
|
| |
| 15 |
26168 |
WASHER |
|
|
|
|
|
| |
| 16 |
98261 |
SCREW, (.375-16 x .750) |
|
|
|
|
|
| |
| 21 |
20553 |
WASHER, (.406 x .734 x .063) |
|
|
|
|
|
| |
| 18 |
37626 |
SCREW, (.375-24 x 4.250) |
|
|
|
|
|
| |
| 19 |
28105 |
WASHER |
|
|
|
|
|
| |
| 20 |
63894 |
SPACER |
|
|
|
|
|
| |
| 22 |
23161 |
NUT, (.375-24) |
|
|
|
|
|
| |
| 23 |
16738A1 |
BRACKET, Alternator |
|
|
|
|
|
| |
| 24 |
12244 |
SCREW, (.375-16 x 1.00) |
2 |
|
|
|
|
| |
| 25 |
817119A4 |
ALTERNATOR |
|
(See "Alternator" Section For Breakdown) |
|
|
|
| |
| 26 |
96457 |
WASHER, Phenolic (.27 x .81 x .062) |
|
|
|
|
|
| |
| 28 |
79989 |
NUT, (#10-24) Stainless Steel |
|
|
|
|
|
| |
| 29 |
26992 |
LOCKWASHER, (.250) Stainless Steel |
|
|
|
|
|
| |
| 30 |
94330 |
NUT, (.250-20) Brass |
|
|
|
|
|
| |
| 31 |
78945 |
J CLAMP, Harness Support |
|
|
|
|
|
| |
| 32 |
98621 |
SCREW, (.375-16 x .750) |
|
|
|
|
|
| |
