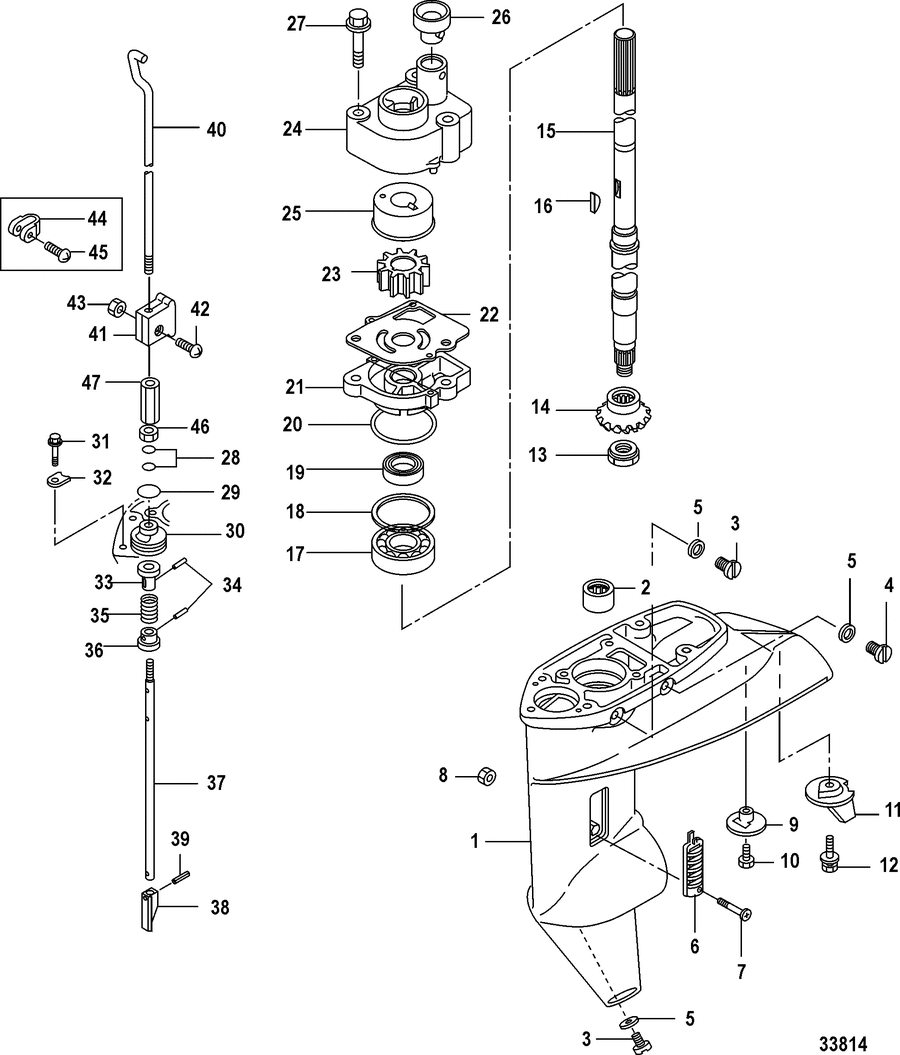

| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|
| - |
95220A08 |
GASKET SET, Lower Unit |
|
|
|
|
|
| |
| - |
803750A06 |
PUMP KIT, Water - Complete |
|
|
|
|
|
| |
| - |
825132T31 |
GEAR HOUSING ASSEMBLY, Complete |
|
Short |
|
|
|
| |
| - |
825132T32 |
GEAR HOUSING ASSEMBLY, Complete |
|
Long |
|
|
|
| |
| - |
825132T33 |
GEAR HOUSING ASSEMBLY, Complete |
|
X-Long |
|
|
|
| |
| 1 |
879147T66 |
GEAR HOUSING, Basic |
|
|
|
|
|
| |
| 2 |
898101991 |
BEARING, Needle |
|
|
|
|
|
| |
| 4 |
953683 |
PLUG |
|
|
|
|
|
| |
| 5 |
95220 |
GASKET |
3 |
|
|
|
|
| |
| 6 |
803730002 |
STRAINER, Water |
2 |
|
|
|
|
| |
| 7 |
17635 |
SCREW |
|
|
|
|
|
| |
| 8 |
85372210 |
NUT |
|
|
|
|
|
| |
| 9 |
16133 |
STRAINER, Water |
|
|
|
|
|
| |
| 10 |
898101959 |
SCREW |
|
|
|
|
|
| |
| 11 |
853762T01 |
TRIM TAB |
|
|
|
|
|
| |
| 12 |
167051 |
BOLT, (M6 x 20) |
|
|
|
|
|
| |
| 13 |
85372211 |
NUT |
|
|
|
|
|
| |
| 14 |
879147T91 |
GEAR, Pinion |
|
|
|
|
|
| |
| 15 |
803738T19 |
DRIVESHAFT, Short |
|
|
|
|
|
| |
| 15 |
803738T20 |
DRIVESHAFT, Long |
|
|
|
|
|
| |
| 15 |
803738014 |
DRIVESHAFT, X-Long |
|
|
|
|
|
| |
| 16 |
803749 |
KEY |
|
|
|
|
|
| |
| 17 |
879147T89 |
BEARING, Ball |
|
|
|
|
|
| |
| 18 |
813276001 |
SHIM, (0.1) |
AR |
|
|
|
|
| |
| 18 |
813276015 |
SHIM, (0.15) |
AR |
|
|
|
|
| |
| 18 |
813276003 |
SHIM, (0.3) |
AR |
|
|
|
|
| |
| 18 |
813276005 |
SHIM, (0.5) |
AR |
|
|
|
|
| |
| 19 |
803752 |
SEAL, Oil |
|
|
|
|
|
| |
| 29 |
8537096 |
O-RING |
|
|
|
|
|
| |
| 21 |
803750A04 |
BASE ASSEMBLY, Water Pump |
|
|
|
|
|
| |
| 22 |
803753 |
GUIDE PLATE |
|
|
|
|
|
| |
| 23 |
803748 |
IMPELLER |
|
|
|
|
|
| |
| 24 |
803750A05 |
HOUSING ASSEMBLY, Upper Water Pump |
|
|
|
|
|
| |
| 25 |
803751 |
LINER, Water Pump |
|
|
|
|
|
| |
| 26 |
8036674 |
SEAL |
|
|
|
|
|
| |
| 27 |
879194269 |
BOLT |
3 |
|
|
|
|
| |
| 28 |
161772 |
O-RING |
|
|
|
|
|
| |
| 30 |
803761 |
BUSHING |
|
|
|
|
|
| |
| 31 |
898103153 |
BOLT |
|
|
|
|
|
| |
| 32 |
803762 |
CLAMP |
|
|
|
|
|
| |
| 33 |
898103156 |
RETAINER |
|
|
|
|
|
| |
| 34 |
16175 |
PIN |
2 |
|
|
|
|
| |
| 35 |
898103158 |
SPRING |
|
|
|
|
|
| |
| 36 |
898103157 |
RETAINER |
|
|
|
|
|
| |
| 37 |
898103151 |
CAM ROD, Short |
|
|
|
|
|
| |
| 37 |
898103152 |
CAM ROD, Long |
|
|
|
|
|
| |
| 37 |
803760018 |
CAM ROD, X-Long |
|
|
|
|
|
| |
| 38 |
898103166 |
CLUTCH CAM |
|
|
|
|
|
| |
| 39 |
16179 |
PIN |
|
|
|
|
|
| |
| 40 |
898103154 |
SHIFT ROD |
|
Tiller Handle |
|
|
|
| |
| 40 |
898103188 |
SHIFT ROD |
|
Remote Control |
|
|
|
| |
| 41 |
898103155 |
JOINT, Reverse Lock Link |
|
|
|
|
|
| |
| 42 |
162452 |
SCREW |
|
|
|
|
|
| |
| 43 |
400212 |
NUT, (M6) Stainless Steel |
|
|
|
|
|
| |
| 44 |
810753004 |
STOPPER |
|
|
|
|
|
| |
| 45 |
855544018 |
SCREW |
|
|
|
|
|
| |
| 46 |
16081 |
NUT, Stainless Steel |
|
|
|
|
|
| |
| 47 |
803767002 |
COUPLER, Shift Shaft |
|
|
|
|
|
| |
| 48 |
8M0075040 |
GASKET, Guide Plate |
|
SN# OR501623 & Up |
|
|
|
| |
