| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|
| - |

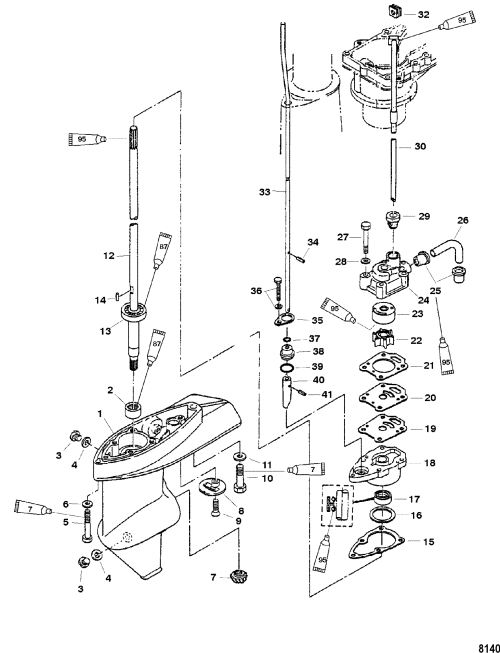

9621T5 |
GEAR HOUSING ASSEMBLY, Complete |
|
(Sailpower/Sailmate) |
|
|
|
| |
| - |
825132T16 |
GEAR HOUSING ASSEMBLY, Complete |
|
(Long) |
|
|
|
| |
| - |
825132T15 |
GEAR HOUSING ASSEMBLY, Complete |
|
(Short) |
|
|
|
| |
| - |
95220A2 |
SEAL KIT, Gear Housing |
|
|
|
|
|
| |
| - |
16159A1 |
REPAIR KIT, Water Pump |
|
|
|
|
|
| |
| 1 |
9621T6 |
GEAR HOUSING ASSEMBLY, Basic |
|
(Sailpower/Sailmate) |
|
|
|
| |
| 1 |
825132T17 |
GEAR HOUSING ASSEMBLY, Basic |
|
|
|
|
|
| |
| 2 |
16124 |
BUSHING |
|
|
|
|
|
| |
| 3 |
953683 |
PLUG |
|
|
|
|
|
| |
| 4 |
95220 |
GASKET |
2 |
|
|
|
|
| |
| 27 |
161251 |
BOLT |
|
|
|
|
|
| |
| 28 |
16826 |
WASHER, Stainless Steel |
4 |
|
|
|
|
| |
| 7 |
16138 |
GEAR |
|
|
|
|
|
| |
| 8 |
16133 |
STRAINER, Water |
|
|
|
|
|
| |
| 9 |
16134 |
SCREW |
|
|
|
|
|
| |
| 10 |
16126 |
BOLT |
|
|
|
|
|
| |
| 11 |
16192 |
WASHER |
|
|
|
|
|
| |
| 12 |
161351 |
DRIVESHAFT |
|
(Short) |
|
|
|
| |
| 12 |
161361 |
DRIVESHAFT |
|
(Long) |
|
|
|
| |
| 13 |
95347 |
BEARING |
|
|
|
|
|
| |
| 14 |
16155 |
KEY |
|
|
|
|
|
| |
| 15 |
16164 |
GASKET |
|
|
|
|
|
| |
| 16 |
161631 |
SHIM, (0.1) |
|
(0.1) |
|
|
|
| |
| 16 |
8132761 |
SHIM, (0.15) |
|
(0.15) |
|
|
|
| |
| 17 |
16162 |
SEAL, Oil |
|
|
|
|
|
| |
| 18 |
826053T |
HOUSING |
|
|
|
|
|
| |
| 19 |
16160 |
GASKET |
|
|
|
|
|
| |
| 20 |
16159 |
PLATE |
|
|
|
|
|
| |
| 21 |
16158 |
GASKET |
|
|
|
|
|
| |
| 22 |
161543 |
IMPELLER |
|
|
|
|
|
| |
| 23 |
16157 |
LINER |
|
|
|
|
|
| |
| 24 |
16156 |
HOUSING, Upper Water Pump |
|
|
|
|
|
| |
| 25 |
16168 |
SEAL |
2 |
|
|
|
|
| |
| 26 |
16167 |
HOSE |
|
|
|
|
|
| |
| 29 |
16171 |
SEAL |
|
|
|
|
|
| |
| 30 |
16169 |
TUBE, Water |
|
(Short) |
|
|
|
| |
| 31 |
16170 |
TUBE, Water |
|
(Long) |
|
|
|
| |
| 32 |
18876 |
GROMMET |
|
|
|
|
|
| |
| 33 |
16174 |
CAM ROD |
|
(Long) |
|
|
|
| |
| 33 |
16173 |
CAM ROD |
|
(Short) |
|
|
|
| |
| 34 |
16179 |
PIN |
|
|
|
|
|
| |
| 35 |
16165 |
RETAINER |
|
|
|
|
|
| |
| 36 |
823042 |
BOLT |
|
|
|
|
|
| |
| 37 |
161771 |
O-RING |
|
|
|
|
|
| |
| 38 |
16176 |
BUSHING |
|
|
|
|
|
| |
| 39 |
16178 |
O-RING |
|
|
|
|
|
| |
| 40 |
16172 |
CAM |
|
|
|
|
|
| |
| 41 |
16175 |
PIN |
|
|
|
|
|
| |
