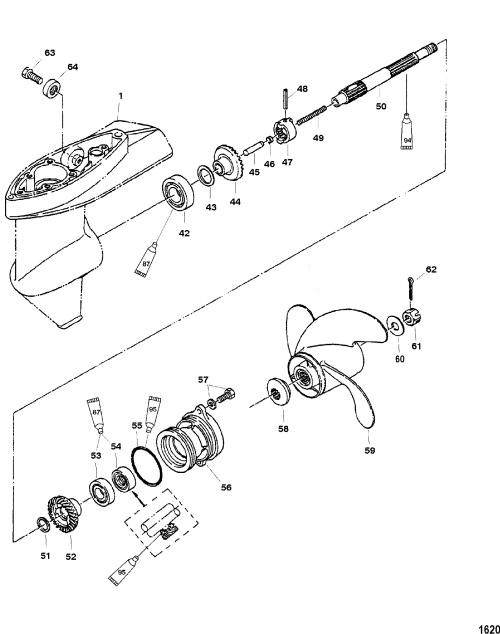

| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|
| - |
825132T16 |
GEAR HOUSING ASSEMBLY, Complete |
|
Long |
|
|
|
| |
| - |
95220A2 |
SEAL KIT, Gear Housing |
|
|
|
|
|
| |
| - |
9621T5 |
GEAR HOUSING ASSEMBLY, Complete |
|
Sailpower/Sailmate |
|
|
|
| |
| - |
825132T15 |
GEAR HOUSING ASSEMBLY, Complete |
|
Short |
|
|
|
| |
| 1 |
825132T17 |
GEAR HOUSING ASSEMBLY |
|
|
|
|
|
| |
| 1 |
9621T6 |
GEAR HOUSING ASSEMBLY, Basic |
|
Sailpower/Sailmate |
|
|
|
| |
| 42 |
16128 |
BEARING, Ball |
|
|
|
|
|
| |
| 43 |
16141 |
SHIM, (0.1) |
AR |
|
|
|
|
| |
| 43 |
813277 |
SHIM, (0.15) |
AR |
|
|
|
|
| |
| 44 |
812944 |
GEAR |
|
|
|
|
|
| |
| 45 |
16152 |
FOLLOWER, Cam |
|
|
|
|
|
| |
| 46 |
16153 |
RETAINER |
|
|
|
|
|
| |
| 47 |
812946 |
CLUTCH |
|
|
|
|
|
| |
| 48 |
16150 |
PIN, Clutch |
|
|
|
|
|
| |
| 49 |
17667 |
SPRING |
|
|
|
|
|
| |
| 50 |
195133 |
PROPELLER SHAFT |
|
|
|
|
|
| |
| 51 |
16140 |
WASHER |
|
|
|
|
|
| |
| 52 |
8129451 |
GEAR, Reverse |
|
|
|
|
|
| |
| 53 |
16132 |
BEARING, Ball |
|
|
|
|
|
| |
| 54 |
16130 |
SEAL, Oil |
|
|
|
|
|
| |
| 55 |
16131 |
O-RING |
|
|
|
|
|
| |
| 56 |
825118T |
HOUSING |
|
|
|
|
|
| |
| 57 |
8230424 |
BOLT |
|
|
|
|
|
| |
| 58 |
16145Q01 |
THRUST WASHER |
|
|
|
|
|
| |
| 59 |
16144 |
PROPELLER |
OPT |
6 Pitch |
|
|
|
| |
| 59 |
812951A1 |
PROPELLER |
|
6 Pitch - Sailboat |
|
|
|
| |
| 59 |
812949002 |
PROPELLER |
|
7 Pitch - 4 Horsepower - Standard |
|
|
|
| |
| 59 |
812950002 |
PROPELLER |
|
8 Pitch - 5/6 Horsepower - Standard |
|
|
|
| |
| 59 |
812950A1 |
PROPELLER |
|
9 Pitch |
|
|
|
| |
| 60 |
16146 |
WASHER |
|
|
|
|
|
| |
| 61 |
16147 |
PROP NUT |
|
|
|
|
|
| |
| 62 |
815026 |
COTTER PIN |
|
|
|
|
|
| |
| 63 |
16832 |
BOLT, (M6 x 16) |
|
|
|
|
|
| |
| 64 |
875208 |
ANODE |
|
|
|
|
|
| |
