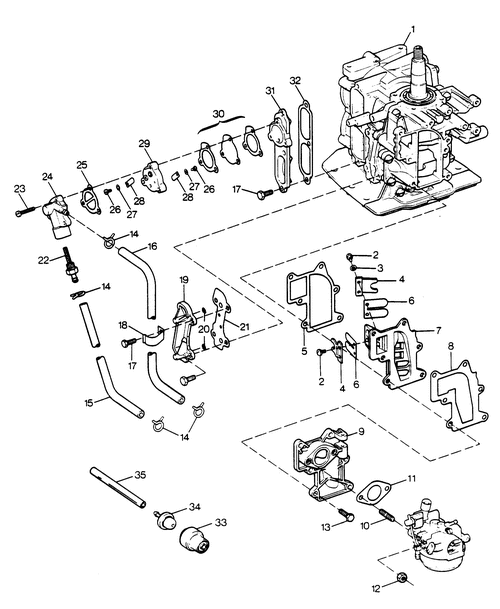

| Key |
Part Number |
Description |
Qty Req |
Comments |
Price |
Qty on Hand |
|
| 1 |
FC681010 |
SHORT BLOCK |
|
|
|
|
|
| |
| 2 |
F1755 |
ROUND HEAD SCREW W/LOCKWASHER, 6 - 32 X 5/18 |
8 |
|
|
|
|
| |
| 3 |
F1704 |
LOCKWASHER, #6 S.S. |
2 |
|
|
|
|
| |
| 4 |
F424161 |
REED STOP, 15 HP |
4 |
|
|
|
|
| |
| 5 |
F286159-1 |
GASKET, REED PLATE |
|
|
|
|
|
| |
| 6 |
F31160-1 |
REED |
4 |
|
|
|
|
| |
| 7 |
FA424158 |
REED PLATE W/REEDS AND REED STOPS - 15 HP |
|
|
|
|
|
| |
| 8 |
F424168-1 |
GASKET, MANIFOLD |
|
|
|
|
|
| |
| 9 |
FA424167 |
MANIFOLD W/STUDS |
|
|
|
|
|
| |
| 10 |
F2788004 |
STUD, CARBURETOR |
2 |
|
|
|
|
| |
| 11 |
F18906 |
GASKET, CARBURETOR |
|
|
|
|
|
| |
| 12 |
F1490 |
HEX NUT, 1/4 - 20 |
2 |
|
|
|
|
| |
| 13 |
F2008 |
HEX HEAD SCREW, 1/4 - 20 X 7/8 |
6 |
|
|
|
|
| |
| 14 |
F2706772 |
HOSE CLAMP |
4 |
|
|
|
|
| |
| 15 |
F40253-1 |
FUEL LINE (SUPPORT PLATE TO FUEL PUMP) |
|
|
|
|
|
| |
| 16 |
F901754 |
FUEL LINE (FUEL PUMP TO CARBURETOR) |
|
|
|
|
|
| |
| 17 |
F1922 |
HEX HEAD SCREW, 1/4 - 20 X 5/8 |
7 |
|
|
|
|
| |
| 18 |
F286772-1 |
CLAMP |
|
|
|
|
|
| |
| 19 |
FA429471 |
COVER, CYLINDER DRAIN WITH CHECK VALVES AND SCREENS |
|
|
|
|
|
| |
| 20 |
F429811 |
SCREEN |
2 |
|
|
|
|
| |
| 21 |
F429472 |
GASKET, CYLINDER DRAIN COVER |
|
|
|
|
|
| |
| 22 |
F901811 |
FILTER, FUEL |
|
|
|
|
|
| |
| 23 |
F1069 |
HEAD SCREW, 10 - 24 X 1-1/6 |
3 |
|
|
|
|
| |
| 24 |
F901746-2 |
COVER, FUEL PUMP |
|
|
|
|
|
| |
| 25 |
F24748-2 |
GASKET, FUEL PUMP |
|
|
|
|
|
| |
| 26 |
F1286 |
PAN HEAD SCREW, 4 - 40 X 3/16 |
2 |
|
|
|
|
| |
| 27 |
F8003 |
PLAIN WASHER |
2 |
|
|
|
|
| |
| 28 |
F18160-3 |
REED, FUEL PUMP |
2 |
|
|
|
|
| |
| 29 |
F2A24757 |
PLATE, FUEL PUMP W/REEDS |
|
|
|
|
|
| |
| 30 |
818043A1 |
FUEL PUMP DIAPHRAGM W/GASKETS |
|
|
|
|
|
| |
| 31 |
F286222 |
COVER, TRANSFER PORT |
|
|
|
|
|
| |
| 32 |
F286223 |
GASKET, TRANSFER PORT COVER |
|
|
|
|
|
| |
| 33 |
F681954 |
COVER, PRIME BULB |
|
|
|
|
|
| |
| 34 |
F681046 |
BULB, PRIME |
|
|
|
|
|
| |
| 35 |
F681243 |
HOSE (PRIME BULB TO CARBURETOR |
|
|
|
|
|
| |
